CHASIS THERMALTAKE AH T200

$830.000

Categoría: Etiquetas: , , ,

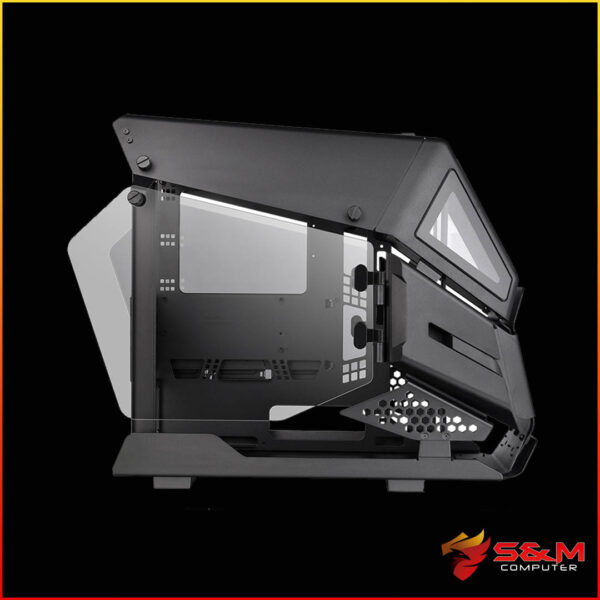

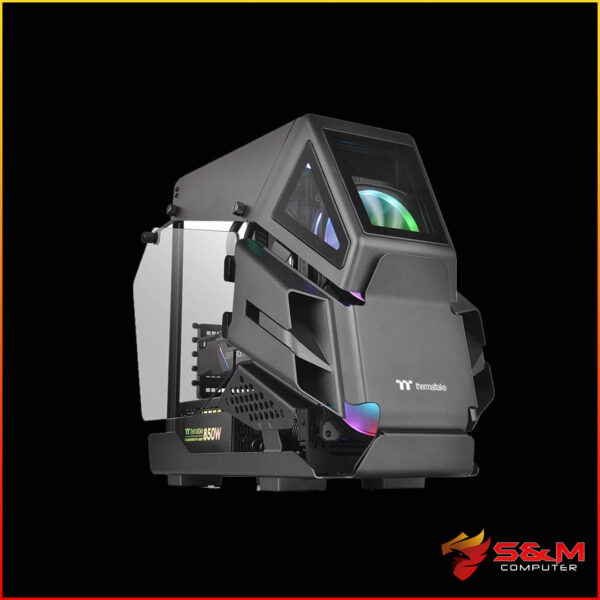

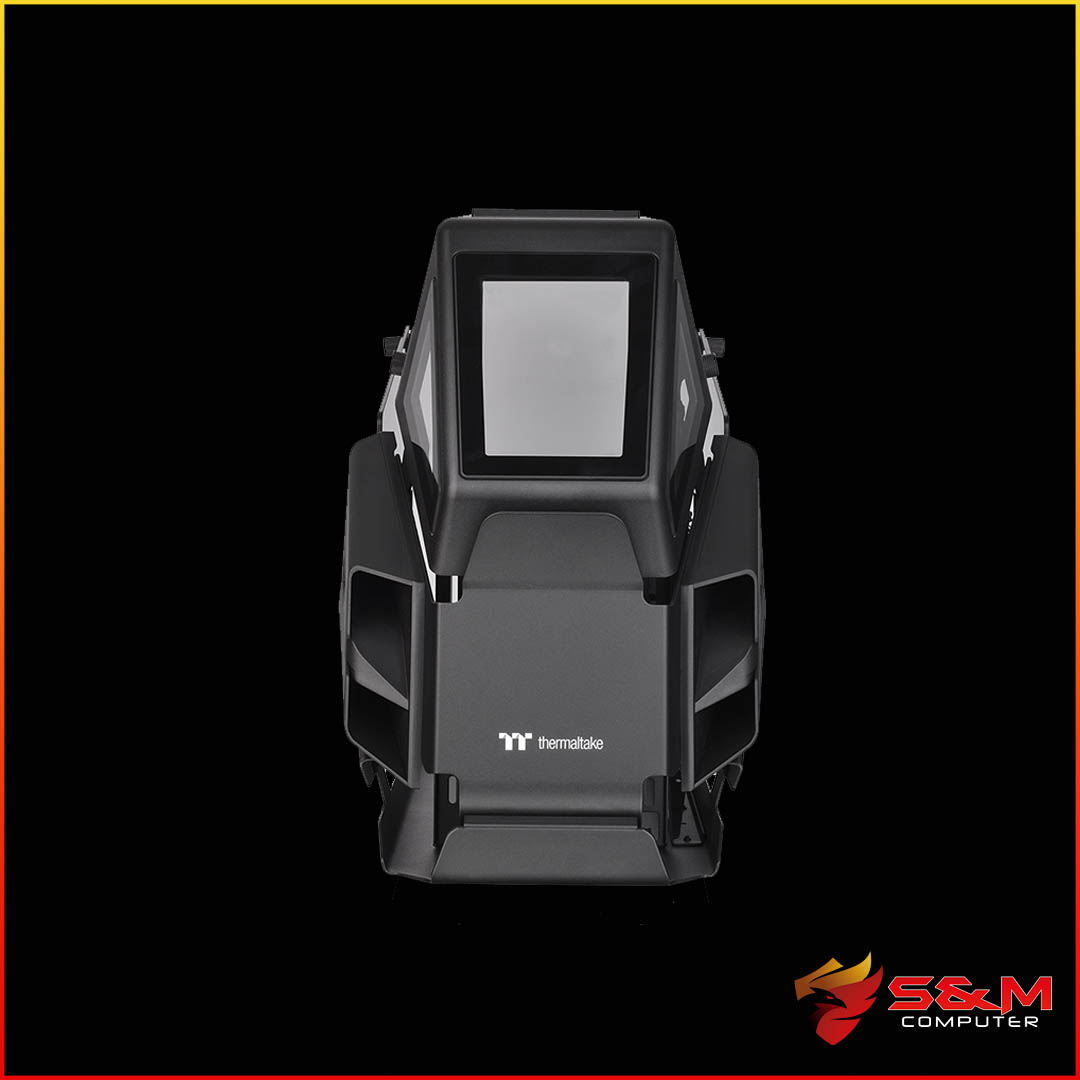

The AH T200, a smaller version of the AH T600, is the first micro case from the AH Series which is forged with a sturdy, air-force styled architecture with two large 4mm tempered glass panels on the left and right sides, and three 3mm tempered glass windows on the front. I/O ports are located at the top-front panel with a futuristic power button. Not only ensures outstanding ventilation but enables users to demonstrate their handwork and showcase their internal components. The AH T200 can hold up to two 140mm fans at the front and on top, 240mm or 280mm All-In-One CPU cooler at the front. The AH T200 Micro Chassis is one-of-a-kind that all users will notice, love, and desire.

P/N

CA-1R4-00S1WN-00

SERIES

AH Series

MODEL

AH T200

CASE TYPE

Micro Case

DIMENSION (H X W X D)

444.2 x 282 x 551.5 mm

(17.5 x 11.1 x 21.7 inch)

NET WEIGHT

10.8 kg / 23.8 lb

SIDE PANEL

Tempered Glass x 2

COLOR

Black

MATERIAL

SPCC

COOLING SYSTEM

N/A

DRIVE BAYS

-ACCESSIBLE

-HIDDEN



2 x 3.5″ or 3 x 2.5” (3.5” HDD thickness limitation: 22mm)

–



EXPANSION SLOTS

5

MOTHERBOARDS

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX)

I/O PORT

USB 3.1 (Gen 2) Type C x 1, USB 3.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (optional)

FAN SUPPORT

Front:

2 x 120mm or 1 x 120mm

2 x 140mm or 1 x 140mm



Top:

2 x 120mm or 1 x 120mm

2 x 140mm or 1 x 140mm

RADIATOR SUPPORT

Front:

1 x 240mm or 1 x 120mm

1 x 280mm or 1 x 140mm



CLEARANCE

CPU cooler max height: 150mm

VGA max length: 320mm

PSU max length: 180mm

3.5” HDD thickness limitation: 22mm
