CHASIS THERMALTAKE H570 TG

$490.000

Categoría: Etiquetas: , , ,

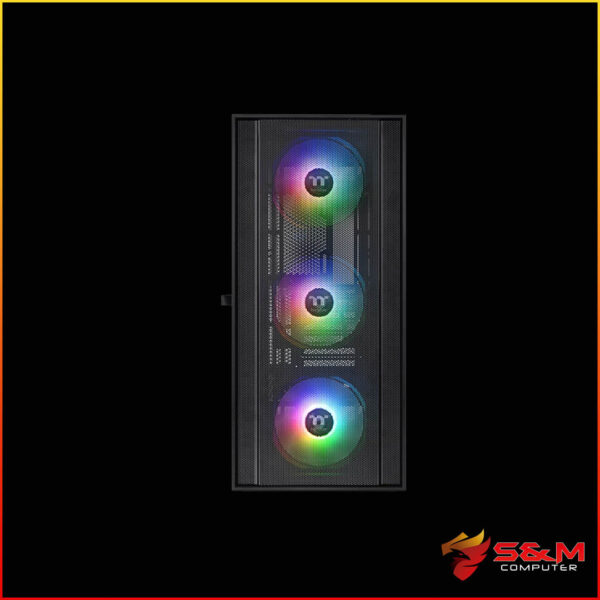

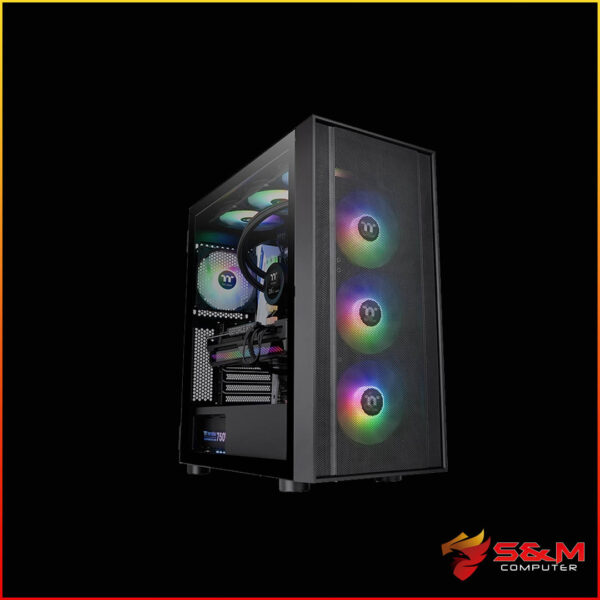

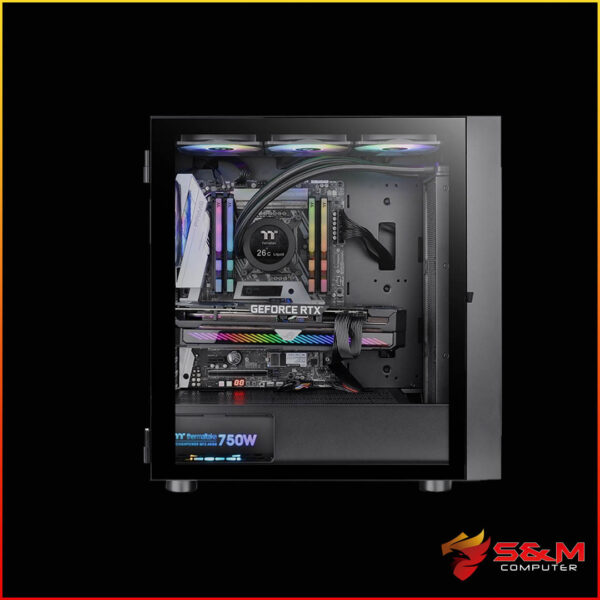

H570 TG ARGB mid-tower chassis is the latest edition of our H series. It can support up to E-ATX (12“ x 13”) Motherboards, and it comes with three pre-installed hydraulic bearing 120mm ARGB Lite front fans, which can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to seven 120mm fans can be fitted in the chassis and up to 360mm radiator can be placed at the top and the front of the H570 TG ARGB mid-tower chassis.

P/N

CA-1T9-00M1WN-01

MODEL

H570 TG ARGB

CASE TYPE

Mid Tower

DIMENSION (H X W X D)

487 x 216 x 463.6 mm

(19.2 x 8.5 x 18.3 inch)

NET WEIGHT

7.5 kg / 16.5 lbs.

SIDE PANEL

4mm Tempered Glass x 1

COLOR

Black

MATERIAL

SPCC

COOLING SYSTEM

Front(intake):

120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 3

DRIVE BAYS

2 x 3.5”, 2 x 2.5” or 4 x 2.5”

EXPANSION SLOTS

7

MOTHERBOARDS

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),

12” x 9.6” (ATX), 12” x 13”(E-ATX)

I/O PORT

USB 3.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (optional)

FAN SUPPORT

Front:

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm, 2 x 140mm, 1 x 140mm

2 x 200mm, 1 x 200mm

Top:

3 x 120mm, 2 x 120mm, 1 x 120mm,

2 x 140mm, 1 x 140mm

Rear:

1 x 120mm

RADIATOR SUPPORT

Front:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Top:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Rear:

1 x 120mm

CLEARANCE

CPU cooler height limitation:

160mm

VGA length limitation:

375mm

PSU length limitation:

180mm
